使用 Firestore 新增多人遊戲支援

如何使用 Firebase Cloud Firestore 在遊戲中實現多人遊戲。

多人遊戲需要一種在玩家之間同步遊戲狀態的方式。廣義上講,存在兩種型別的多人遊戲

  1. 高滴答率。這些遊戲需要在每秒多次同步遊戲狀態,且延遲較低。這些包括動作遊戲、體育遊戲、格鬥遊戲。

  2. 低滴答率。這些遊戲只需要偶爾同步遊戲狀態,且延遲影響較小。這些包括紙牌遊戲、策略遊戲、益智遊戲。

這類似於即時遊戲與回合制遊戲之間的區別,但這種類比並不完全準確。例如,即時策略遊戲——顧名思義——是即時執行的,但這與高滴答率並不相關。這些遊戲可以在玩家互動之間在本地機器上模擬很多內容。因此,它們不需要那麼頻繁地同步遊戲狀態。

An illustration of two mobile phones and a two-way arrow between them

如果您可以作為開發者選擇低滴答率,您應該這樣做。低滴答率降低了延遲要求和伺服器成本。對於需要高滴答率同步的情況,Firestore 不適合。選擇專用的多人遊戲伺服器解決方案,例如 Nakama。Nakama 有一個 Dart 包

如果您預計您的遊戲需要低滴答率的同步,請繼續閱讀。

本教程演示瞭如何使用 cloud_firestore 在遊戲中實現多人遊戲功能。本教程不需要伺服器。它使用兩個或多個客戶端使用 Cloud Firestore 共享遊戲狀態。

1. 準備遊戲以支援多人遊戲

#

編寫遊戲程式碼,以響應本地事件和遠端事件來更改遊戲狀態。本地事件可以是玩家操作或某些遊戲邏輯。遠端事件可以是來自伺服器的世界更新。

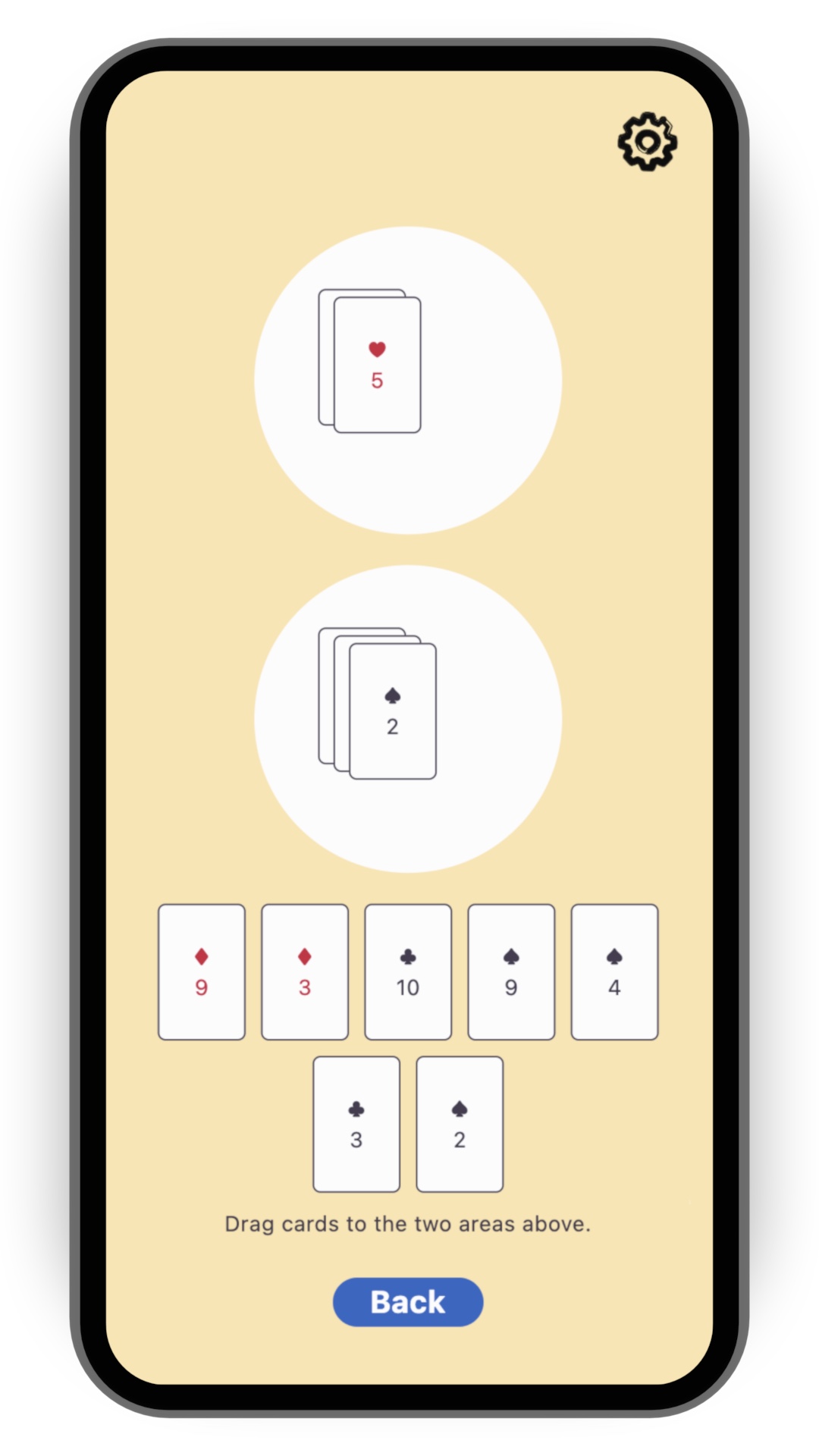

Screenshot of the card game

為了簡化本教程,請從 card 模板開始,該模板位於 flutter/games 倉庫 中。執行以下命令來克隆該倉庫

git clone https://github.com/flutter/games.git

templates/card 中開啟專案。

2. 安裝 Firestore

#

Cloud Firestore 是雲中的水平擴充套件的 NoSQL 文件資料庫。它包括內建的即時同步。這非常適合我們的需求。它使遊戲狀態在雲資料庫中保持更新,因此每個玩家都看到相同狀態。

如果您想快速瞭解 Cloud Firestore,請觀看以下影片

在新的標籤頁上在 YouTube 上觀看:“什麼是 NoSQL 資料庫?瞭解 Cloud Firestore”

要將 Firestore 新增到您的 Flutter 專案,請遵循 開始使用 Cloud Firestore 指南的前兩個步驟

期望的結果包括

  • 在雲中準備好的 Firestore 資料庫,處於 測試模式
  • 生成的 firebase_options.dart 檔案
  • 將適當的外掛新增到您的 pubspec.yaml

不需要在此步驟中編寫任何 Dart 程式碼。一旦您理解了該指南中編寫 Dart 程式碼的步驟,請返回本教程。

3. 初始化 Firestore

#
  1. 開啟 lib/main.dart 並匯入外掛以及在上一步中由 flutterfire configure 生成的 firebase_options.dart 檔案。

    dart
    import 'package:cloud_firestore/cloud_firestore.dart';
    import 'package:firebase_core/firebase_core.dart';

    import 'firebase_options.dart';

  2. lib/main.dart 中,在 runApp() 呼叫之上新增以下程式碼

    dart
    WidgetsFlutterBinding.ensureInitialized();

    await Firebase.initializeApp(options: DefaultFirebaseOptions.currentPlatform);


    這確保了在遊戲啟動時初始化 Firebase。

  3. 將 Firestore 例項新增到應用程式。這樣,任何小部件都可以訪問此例項。小部件還可以對例項缺失做出反應(如果需要)。

    要使用 card 模板執行此操作,可以使用 provider 包(已安裝為依賴項)。

    將佔位符 runApp(MyApp()) 替換為以下內容

    dart
    runApp(Provider.value(value: FirebaseFirestore.instance, child: MyApp()));


    將 provider 放在 MyApp 之上,而不是在其內部。這使您可以在沒有 Firebase 的情況下測試應用程式。

    :::note 如果您使用 card 模板,則必須 安裝 provider 或使用您自己的方法從程式碼庫的不同部分訪問 FirebaseFirestore 例項。 ::

4. 建立 Firestore 控制器類

#

雖然可以直接與 Firestore 通訊,但您應該編寫一個專門的控制器類,以使程式碼更具可讀性和可維護性。

如何實現控制器取決於您的遊戲以及多人遊戲體驗的確切設計。對於 card 模板,您可以同步兩個圓形遊戲區域的內容。這不足以提供完整的多人遊戲體驗,但這是一個好的開始。

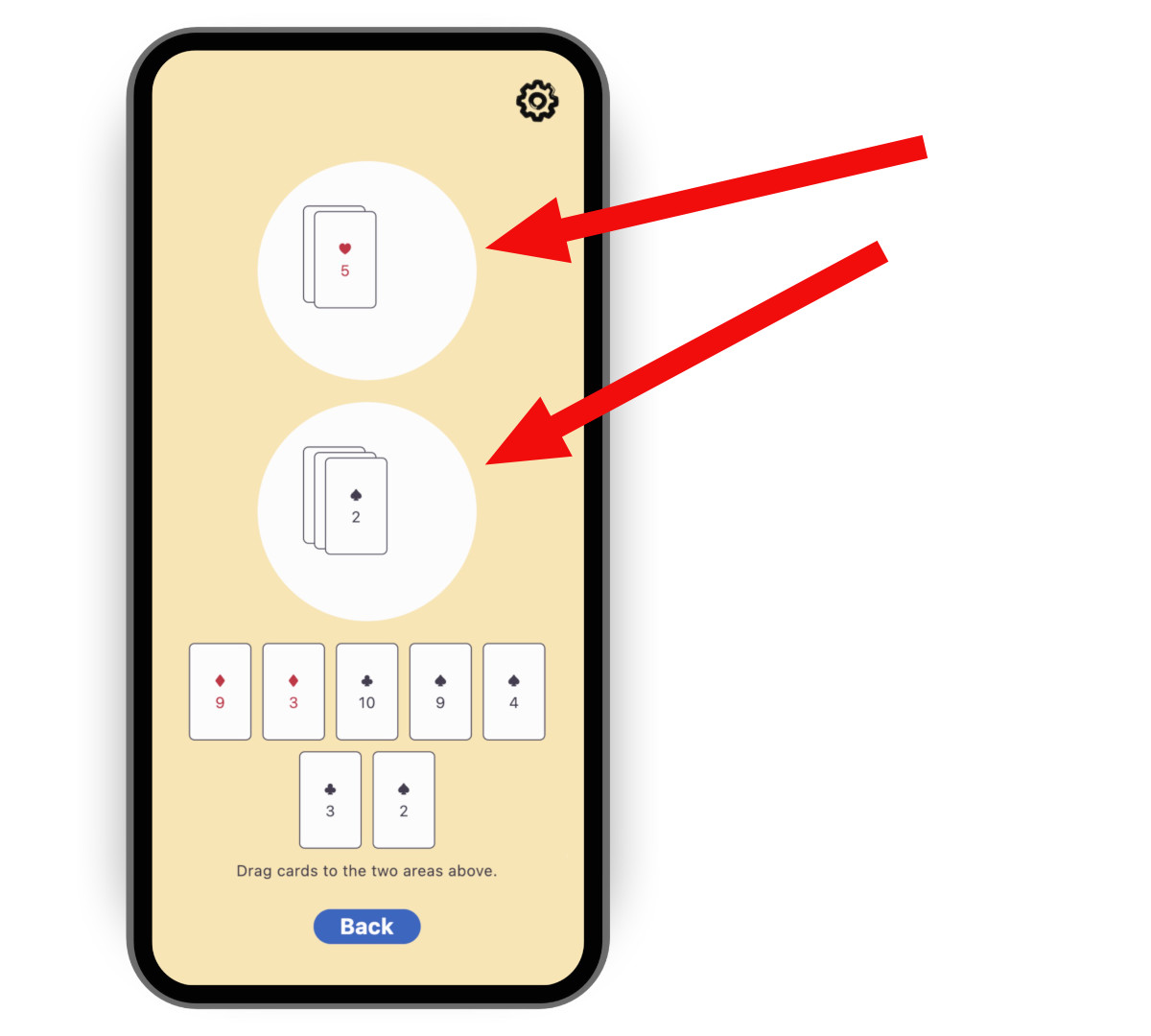

Screenshot of the card game, with arrows pointing to playing areas

要建立控制器,請複製,然後將以下程式碼貼上到名為 lib/multiplayer/firestore_controller.dart 的新檔案中。

dart
import 'dart:async';

import 'package:cloud_firestore/cloud_firestore.dart';
import 'package:flutter/foundation.dart';
import 'package:logging/logging.dart';

import '../game_internals/board_state.dart';
import '../game_internals/playing_area.dart';
import '../game_internals/playing_card.dart';

class FirestoreController {
  static final _log = Logger('FirestoreController');

  final FirebaseFirestore instance;

  final BoardState boardState;

  /// For now, there is only one match. But in order to be ready
  /// for match-making, put it in a Firestore collection called matches.
  late final _matchRef = instance.collection('matches').doc('match_1');

  late final _areaOneRef = _matchRef
      .collection('areas')
      .doc('area_one')
      .withConverter<List<PlayingCard>>(
        fromFirestore: _cardsFromFirestore,
        toFirestore: _cardsToFirestore,
      );

  late final _areaTwoRef = _matchRef
      .collection('areas')
      .doc('area_two')
      .withConverter<List<PlayingCard>>(
        fromFirestore: _cardsFromFirestore,
        toFirestore: _cardsToFirestore,
      );

  late final StreamSubscription<void> _areaOneFirestoreSubscription;
  late final StreamSubscription<void> _areaTwoFirestoreSubscription;

  late final StreamSubscription<void> _areaOneLocalSubscription;
  late final StreamSubscription<void> _areaTwoLocalSubscription;

  FirestoreController({required this.instance, required this.boardState}) {
    // Subscribe to the remote changes (from Firestore).
    _areaOneFirestoreSubscription = _areaOneRef.snapshots().listen((snapshot) {
      _updateLocalFromFirestore(boardState.areaOne, snapshot);
    });
    _areaTwoFirestoreSubscription = _areaTwoRef.snapshots().listen((snapshot) {
      _updateLocalFromFirestore(boardState.areaTwo, snapshot);
    });

    // Subscribe to the local changes in game state.
    _areaOneLocalSubscription = boardState.areaOne.playerChanges.listen((_) {
      _updateFirestoreFromLocalAreaOne();
    });
    _areaTwoLocalSubscription = boardState.areaTwo.playerChanges.listen((_) {
      _updateFirestoreFromLocalAreaTwo();
    });

    _log.fine('Initialized');
  }

  void dispose() {
    _areaOneFirestoreSubscription.cancel();
    _areaTwoFirestoreSubscription.cancel();
    _areaOneLocalSubscription.cancel();
    _areaTwoLocalSubscription.cancel();

    _log.fine('Disposed');
  }

  /// Takes the raw JSON snapshot coming from Firestore and attempts to
  /// convert it into a list of [PlayingCard]s.
  List<PlayingCard> _cardsFromFirestore(
    DocumentSnapshot<Map<String, Object?>> snapshot,
    SnapshotOptions? options,
  ) {
    final data = snapshot.data()?['cards'] as List<Object?>?;

    if (data == null) {
      _log.info('No data found on Firestore, returning empty list');
      return [];
    }

    try {
      return data
          .cast<Map<String, Object?>>()
          .map(PlayingCard.fromJson)
          .toList();
    } catch (e) {
      throw FirebaseControllerException(
        'Failed to parse data from Firestore: $e',
      );
    }
  }

  /// Takes a list of [PlayingCard]s and converts it into a JSON object
  /// that can be saved into Firestore.
  Map<String, Object?> _cardsToFirestore(
    List<PlayingCard> cards,
    SetOptions? options,
  ) {
    return {'cards': cards.map((c) => c.toJson()).toList()};
  }

  /// Updates Firestore with the local state of [area].
  Future<void> _updateFirestoreFromLocal(
    PlayingArea area,
    DocumentReference<List<PlayingCard>> ref,
  ) async {
    try {
      _log.fine('Updating Firestore with local data (${area.cards}) ...');
      await ref.set(area.cards);
      _log.fine('... done updating.');
    } catch (e) {
      throw FirebaseControllerException(
        'Failed to update Firestore with local data (${area.cards}): $e',
      );
    }
  }

  /// Sends the local state of `boardState.areaOne` to Firestore.
  void _updateFirestoreFromLocalAreaOne() {
    _updateFirestoreFromLocal(boardState.areaOne, _areaOneRef);
  }

  /// Sends the local state of `boardState.areaTwo` to Firestore.
  void _updateFirestoreFromLocalAreaTwo() {
    _updateFirestoreFromLocal(boardState.areaTwo, _areaTwoRef);
  }

  /// Updates the local state of [area] with the data from Firestore.
  void _updateLocalFromFirestore(
    PlayingArea area,
    DocumentSnapshot<List<PlayingCard>> snapshot,
  ) {
    _log.fine('Received new data from Firestore (${snapshot.data()})');

    final cards = snapshot.data() ?? [];

    if (listEquals(cards, area.cards)) {
      _log.fine('No change');
    } else {
      _log.fine('Updating local data with Firestore data ($cards)');
      area.replaceWith(cards);
    }
  }
}

class FirebaseControllerException implements Exception {
  final String message;

  FirebaseControllerException(this.message);

  @override
  String toString() => 'FirebaseControllerException: $message';
}

請注意此程式碼的以下特性

  • 控制器的建構函式接受一個 BoardState。這使控制器能夠操作遊戲本地狀態。

  • 控制器訂閱本地更改以更新 Firestore,並訂閱遠端更改以更新本地狀態和 UI。

  • 欄位 _areaOneRef_areaTwoRef 是 Firebase 文件引用。它們描述了每個區域的資料駐留位置,以及如何在本地 Dart 物件(List<PlayingCard>)和遠端 JSON 物件(Map<String, dynamic>)之間進行轉換。Firestore API 允許我們使用 .snapshots() 訂閱這些引用,並使用 .set() 寫入它們。

5. 使用 Firestore 控制器

#
  1. 開啟負責啟動遊戲會話的檔案:對於 card 模板,在 lib/play_session/play_session_screen.dart 中。您將從該檔案例項化 Firestore 控制器。

  2. 匯入 Firebase 和控制器

    dart
    import 'package:cloud_firestore/cloud_firestore.dart';
    import '../multiplayer/firestore_controller.dart';

  3. 將一個可為空的欄位新增到 _PlaySessionScreenState 類,以包含控制器例項

    dart
    FirestoreController? _firestoreController;

  4. 在同一類的 initState() 方法中,新增程式碼以嘗試讀取 FirebaseFirestore 例項,如果成功,則構造控制器。您已在 初始化 Firestore 步驟中將 FirebaseFirestore 例項新增到 main.dart

    dart
    final firestore = context.read<FirebaseFirestore?>();
    if (firestore == null) {
      _log.warning(
        "Firestore instance wasn't provided. "
        'Running without _firestoreController.',
      );
    } else {
      _firestoreController = FirestoreController(
        instance: firestore,
        boardState: _boardState,
      );
    }

  5. 使用同一類的 dispose() 方法銷燬控制器。

    dart
    _firestoreController?.dispose();


6. 測試遊戲

#
  1. 在兩臺單獨的裝置上或在同一裝置上的 2 個不同的視窗中運行遊戲。

  2. 觀察在一個裝置上新增卡片到區域,它如何在另一個裝置上出現。

  3. 開啟 Firebase Web 控制檯 並導航到您的專案 Firestore 資料庫。

  4. 觀察它如何即時更新資料。您甚至可以在控制檯中編輯資料,並檢視所有正在執行的客戶端更新。

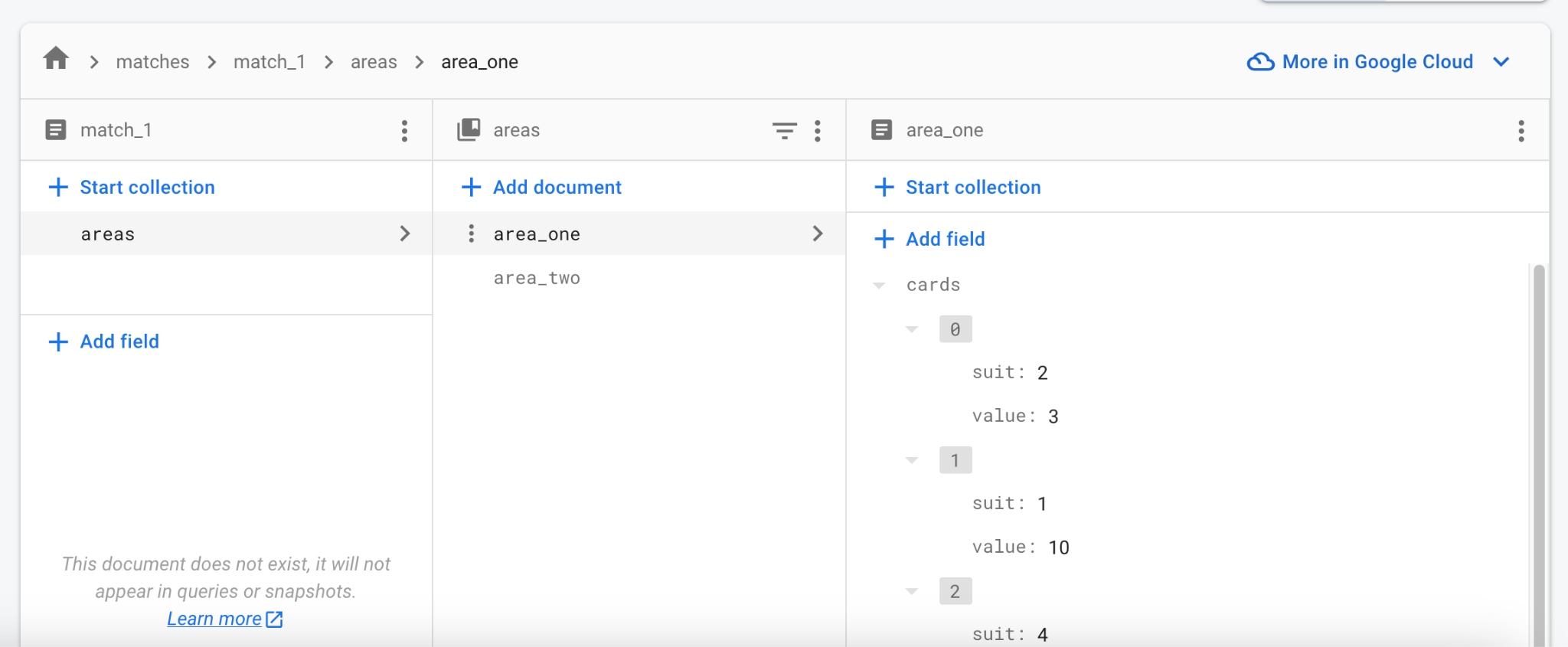

    Screenshot of the Firebase Firestore data view

故障排除

#

測試 Firebase 整合時,您可能會遇到以下常見問題

  • 遊戲在嘗試訪問 Firebase 時崩潰。

    • Firebase 整合未正確設定。重新訪問 步驟 2 並確保將 flutterfire configure 作為該步驟的一部分執行。
  • 遊戲在 macOS 上無法與 Firebase 通訊。

    • 預設情況下,macOS 應用程式沒有網際網路訪問許可權。首先啟用 網際網路授權

7. 後續步驟

#

此時,遊戲具有近乎即時且可靠的跨客戶端狀態同步。它缺少實際的遊戲規則:何時可以玩哪些卡牌以及結果如何。這取決於遊戲本身,由您來嘗試。

An illustration of two mobile phones and a two-way arrow between them

此時,比賽的共享狀態僅包括兩個遊戲區域和其中的卡牌。您還可以將其他資料儲存到 _matchRef 中,例如玩家是誰以及輪到誰了。如果您不確定從哪裡開始,請遵循 Firestore 程式碼實驗室 以熟悉 API。

起初,與同事和朋友測試您的多人遊戲時,單個比賽就足夠了。在接近釋出日期時,請考慮身份驗證和匹配。幸運的是,Firebase 提供了 內建方式來驗證使用者,Firestore 資料庫結構可以處理多個比賽。您可以將比賽集合填充為需要的記錄數,而不是單個 match_1

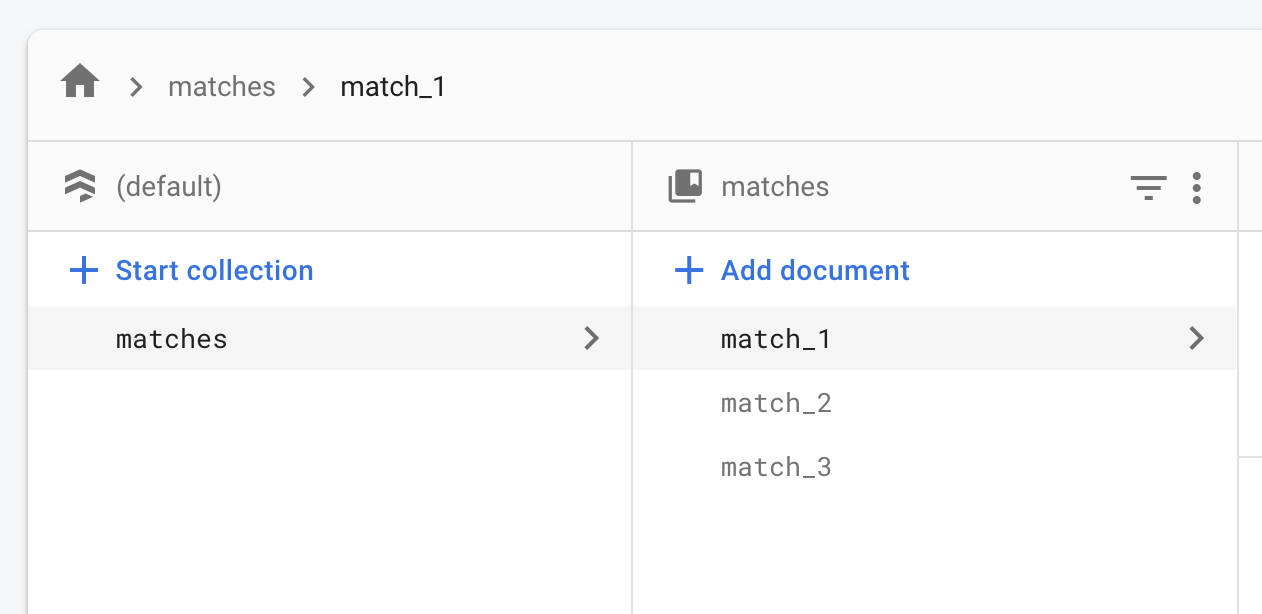

Screenshot of the Firebase Firestore data view with additional matches

線上比賽可以從“等待”狀態開始,只有第一名玩家存在。其他玩家可以在某種大廳中看到“等待”比賽。一旦有足夠多的玩家加入比賽,它將變為“活動”。再次,確切的實現取決於您想要什麼樣的線上體驗。基本原理仍然相同:一個大型文件集合,每個文件代表一個活動或潛在的比賽。
