交錯動畫

如何在 Flutter 中編寫交錯動畫。

交錯動畫的概念非常直觀:視覺變化以一系列操作的形式發生,而不是一次性全部完成。動畫可以是純粹的連續動畫(一個接一個地變化),也可以是部分或完全重疊的。它還可以包含間隙,即不發生任何變化的階段。

本指南介紹瞭如何在 Flutter 中構建交錯動畫。

以下影片演示了 basic_staggered_animation 執行的動畫效果。

在 YouTube 新標籤頁中觀看:“交錯動畫示例”

在影片中,您可以看到單個元件的以下動畫效果:它最初是一個帶有圓角邊框的藍色正方形。該正方形按以下順序進行變換:

  1. 淡入
  2. 變寬
  3. 變高並向上移動
  4. 變形為帶邊框的圓形
  5. 顏色變為橙色

動畫向前執行結束後,會反向執行。

交錯動畫的基本結構

#

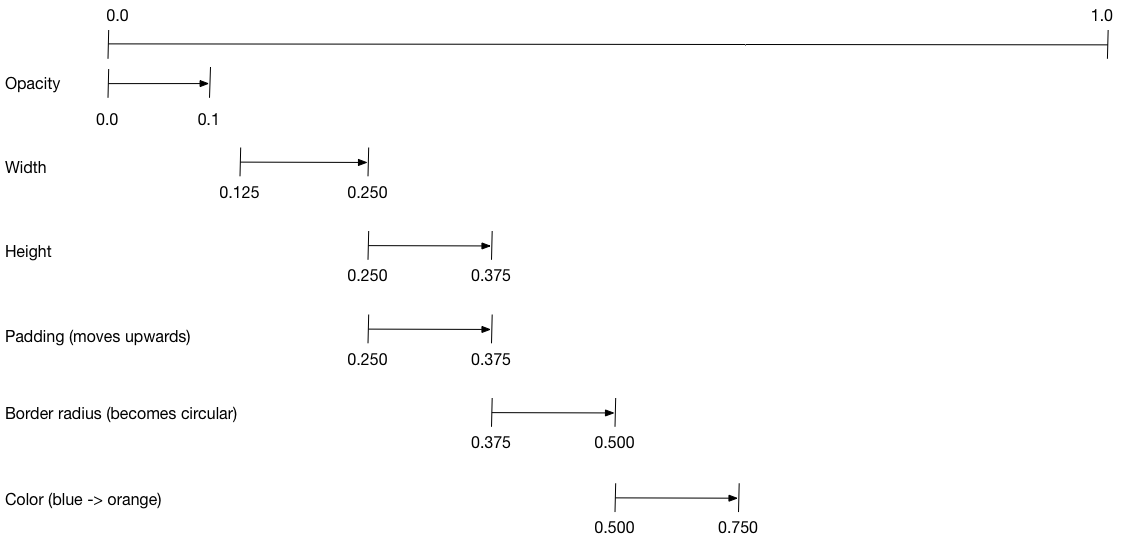

下圖顯示了 basic_staggered_animation 示例中使用的 Interval。您可能會注意到以下特徵:

  • 不透明度在時間軸的前 10% 期間發生變化。
  • 不透明度的變化和寬度的變化之間存在一個微小的間隙。
  • 在時間軸的最後 25% 期間,沒有任何動畫發生。
  • 增加內邊距 (padding) 會使元件看起來向上升起。
  • 將邊框半徑 (border radius) 增加到 0.5,可以將帶有圓角的正方形變為圓形。
  • 內邊距和高度的變化發生在完全相同的時間間隔內,但這並非必須如此。

Diagram showing the interval specified for each motion

設定動畫步驟

  • 建立一個 AnimationController 來管理所有的 Animations
  • 為每個要進行動畫的屬性建立一個 Tween
    • Tween 定義了一個值的範圍。
    • Tweenanimate 方法需要傳入 parent 控制器,併為該屬性生成一個 Animation 物件。
  • Animationcurve 屬性上指定時間間隔 (Interval)。

當控制動畫的值發生變化時,新動畫的值也會隨之改變,從而觸發 UI 更新。

以下程式碼為 width 屬性建立了一個 Tween。它構建了一個 CurvedAnimation,指定了一條緩動曲線。請參閱 Curves 以獲取其他預定義的動畫曲線。

dart
width = Tween<double>(
  begin: 50.0,
  end: 150.0,
).animate(
  CurvedAnimation(
    parent: controller,
    curve: const Interval(
      0.125,
      0.250,
      curve: Curves.ease,
    ),
  ),
),

beginend 的值不一定是 double 型別。以下程式碼構建了 borderRadius 屬性(用於控制正方形圓角的程度)的 Tween,使用了 BorderRadius.circular()

dart
borderRadius = BorderRadiusTween(
  begin: BorderRadius.circular(4),
  end: BorderRadius.circular(75),
).animate(
  CurvedAnimation(
    parent: controller,
    curve: const Interval(
      0.375,
      0.500,
      curve: Curves.ease,
    ),
  ),
),

完整的交錯動畫

#

與所有互動式元件一樣,完整的動畫由一對元件組成:一個無狀態元件 (StatelessWidget) 和一個有狀態元件 (StatefulWidget)。

無狀態元件指定 Tween,定義 Animation 物件,並提供一個負責構建元件樹動畫部分的 build() 函式。

有狀態元件建立控制器,播放動畫,並構建元件樹的非動畫部分。當螢幕上的任何位置檢測到點選時,動畫就會開始。

basic_staggered_animation 的 main.dart 完整程式碼

無狀態元件:StaggerAnimation

#

在無狀態元件 StaggerAnimation 中,build() 函式例項化了一個 AnimatedBuilder——這是一個用於構建動畫的通用元件。AnimatedBuilder 構建元件,並使用 Tween 的當前值對其進行配置。該示例建立了一個名為 _buildAnimation() 的函式(執行實際的 UI 更新),並將其分配給 builder 屬性。AnimatedBuilder 會監聽來自動畫控制器的通知,並在值發生變化時標記元件樹為髒 (dirty)。動畫的每一幀都會更新這些值,從而導致對 _buildAnimation() 的呼叫。

dart
class StaggerAnimation extends StatelessWidget {
  StaggerAnimation({super.key, required this.controller}) :

    // Each animation defined here transforms its value during the subset
    // of the controller's duration defined by the animation's interval.
    // For example the opacity animation transforms its value during
    // the first 10% of the controller's duration.

    opacity = Tween<double>(
      begin: 0.0,
      end: 1.0,
    ).animate(
      CurvedAnimation(
        parent: controller,
        curve: const Interval(
          0.0,
          0.100,
          curve: Curves.ease,
        ),
      ),
    ),

    // ... Other tween definitions ...
    );

  final AnimationController controller;
  final Animation<double> opacity;
  final Animation<double> width;
  final Animation<double> height;
  final Animation<EdgeInsets> padding;
  final Animation<BorderRadius?> borderRadius;
  final Animation<Color?> color;

  // This function is called each time the controller "ticks" a new frame.
  // When it runs, all of the animation's values will have been
  // updated to reflect the controller's current value.
  Widget _buildAnimation(BuildContext context, Widget? child) {
    return Container(
      padding: padding.value,
      alignment: Alignment.bottomCenter,
      child: Opacity(
        opacity: opacity.value,
        child: Container(
          width: width.value,
          height: height.value,
          decoration: BoxDecoration(
            color: color.value,
            border: Border.all(
              color: Colors.indigo[300]!,
              width: 3,
            ),
            borderRadius: borderRadius.value,
          ),
        ),
      ),
    );
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      builder: _buildAnimation,
      animation: controller,
    );
  }
}

有狀態元件:StaggerDemo

#

有狀態元件 StaggerDemo 建立了 AnimationController(統管一切),並指定了 2000 毫秒的持續時間。它播放動畫,並構建元件樹中非動畫的部分。當螢幕上檢測到點選時,動畫就會開始。動畫會向前執行,然後再反向執行。

dart
class StaggerDemo extends StatefulWidget {
  @override
  State<StaggerDemo> createState() => _StaggerDemoState();
}

class _StaggerDemoState extends State<StaggerDemo>
    with TickerProviderStateMixin {
  late AnimationController _controller;

  @override
  void initState() {
    super.initState();

    _controller = AnimationController(
      duration: const Duration(milliseconds: 2000),
      vsync: this,
    );
  }

  // ...Boilerplate...

  Future<void> _playAnimation() async {
    try {
      await _controller.forward().orCancel;
      await _controller.reverse().orCancel;
    } on TickerCanceled {
      // The animation got canceled, probably because it was disposed of.
    }
  }

  @override
  Widget build(BuildContext context) {
    timeDilation = 10.0; // 1.0 is normal animation speed.
    return Scaffold(
      appBar: AppBar(
        title: const Text('Staggered Animation'),
      ),
      body: GestureDetector(
        behavior: HitTestBehavior.opaque,
        onTap: () {
          _playAnimation();
        },
        child: Center(
          child: Container(
            width: 300,
            height: 300,
            decoration: BoxDecoration(
              color: Colors.black.withValues(alpha: 0.1),
              border: Border.all(
                color: Colors.black.withValues(alpha: 0.5),
              ),
            ),
            child: StaggerAnimation(controller:_controller.view),
          ),
        ),
      ),
    );
  }
}
